Engine & Power

• Horsepower: 74 HP
• Net Power: ~68 HP
• Engine: FPT 3.4L Turbo Diesel
• Torque: ~232 lb-ft

Performance

• Rated Operating Capacity (ROC):
  • 3,700 lbs (50%)
  • ~2,590 lbs (35%)
• Tipping Load: ~7,400 lbs
• Breakout Force: ~8,500–8,700 lbs
• Lift Type: Vertical (key difference vs TR310)

Weight & Size

• Operating Weight: ~9,600 – 9,900 lbs
• Width: ~76 in (6.3 ft)
• Height to Hinge Pin: ~131 in (~10.9 ft)

 Hydraulics

• Standard Flow: ~24 GPM
• High Flow: up to ~37 GPM
• Pressure: ~3,000 PSI

Travel & Capacity

• Top Speed: ~8 mph
• Fuel Tank: ~25.5 gallons

 What Matters (Real World)

• Big lift: 3,700 lbs → this is why it competes with larger machines
• Vertical lift: ideal for loading trucks/pallets
• Heavy frame: more stable than TR310
• Same HP, more capacity: better ROI on production jobs

 Simple Summary

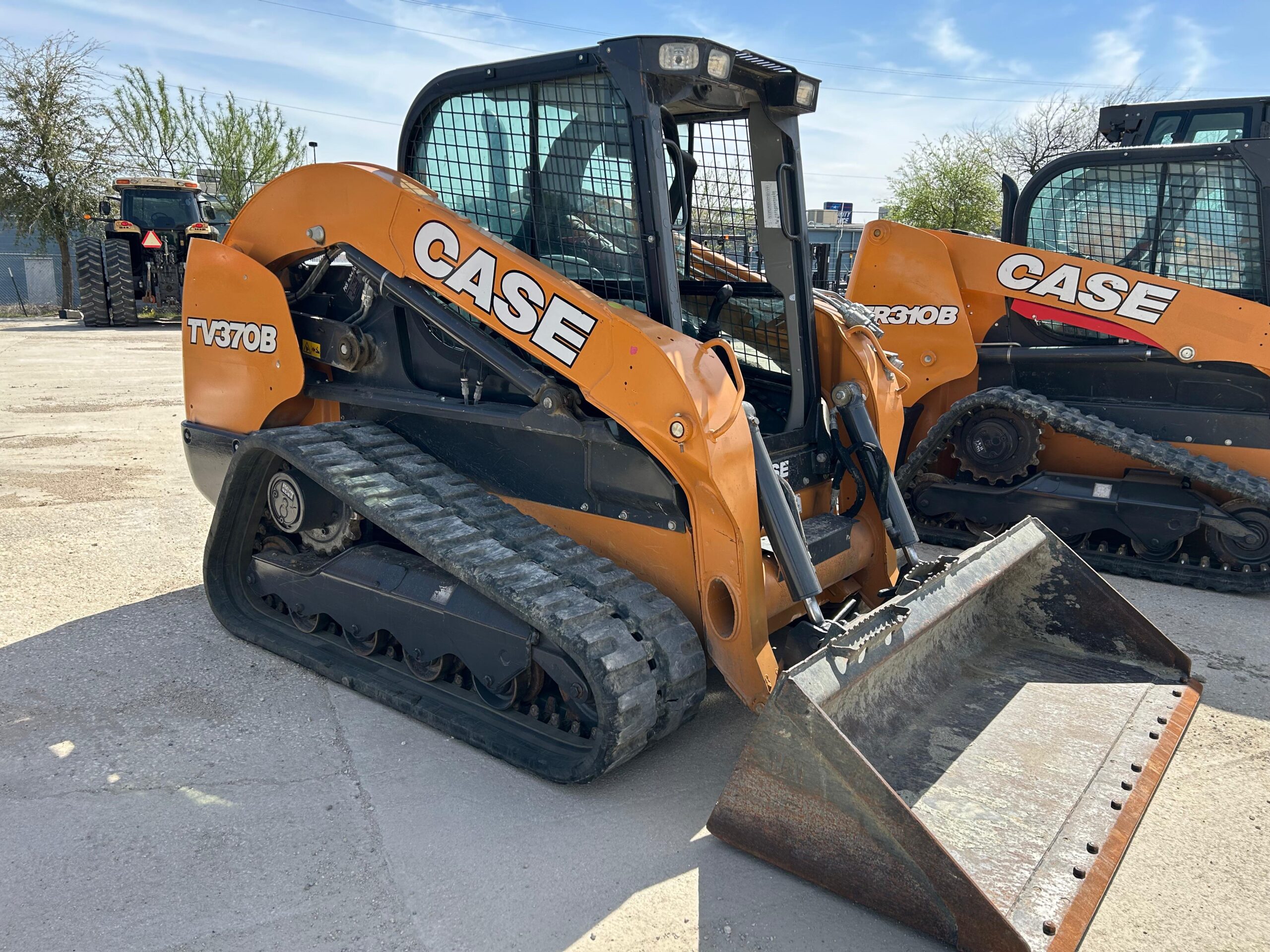

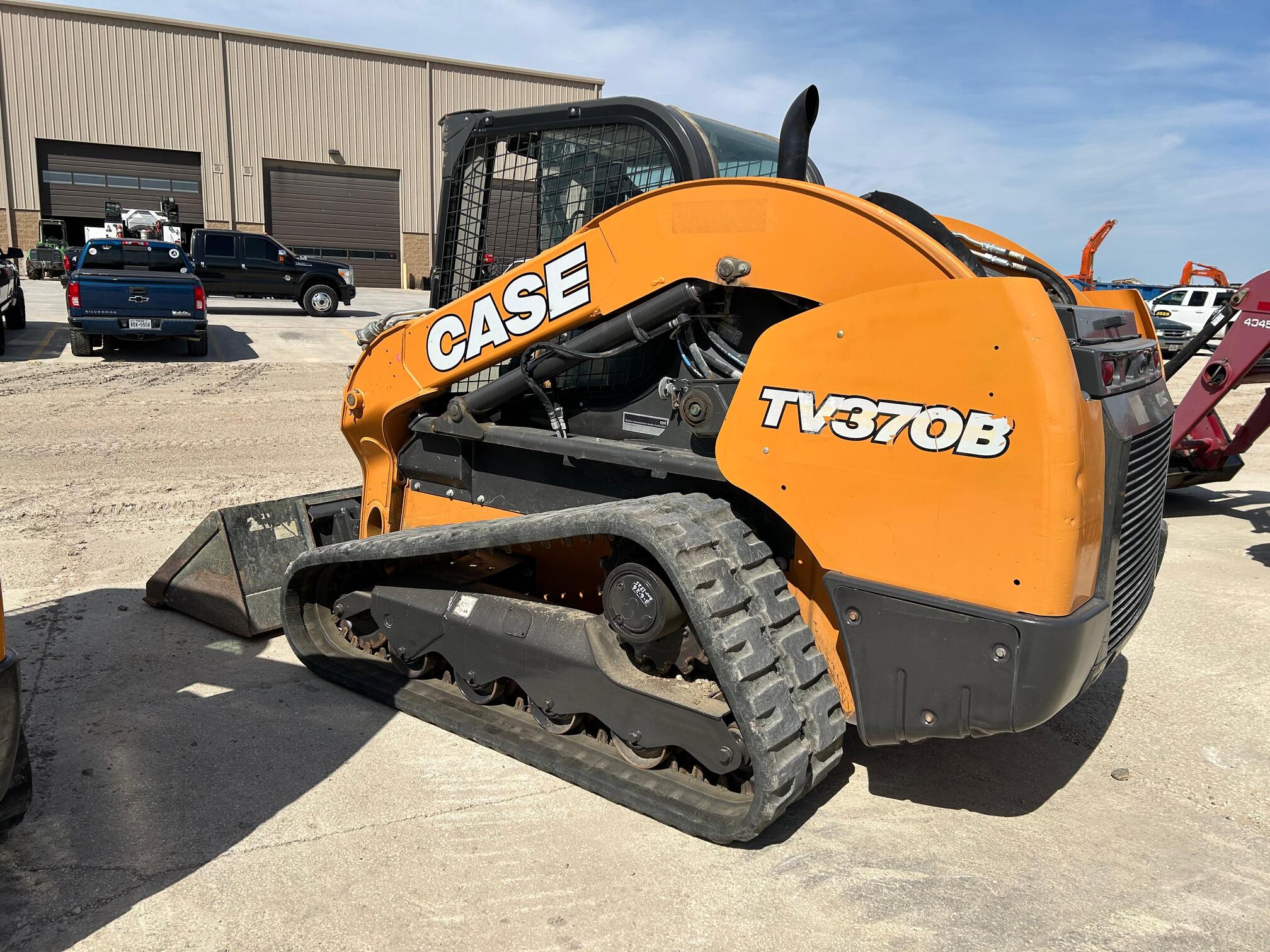

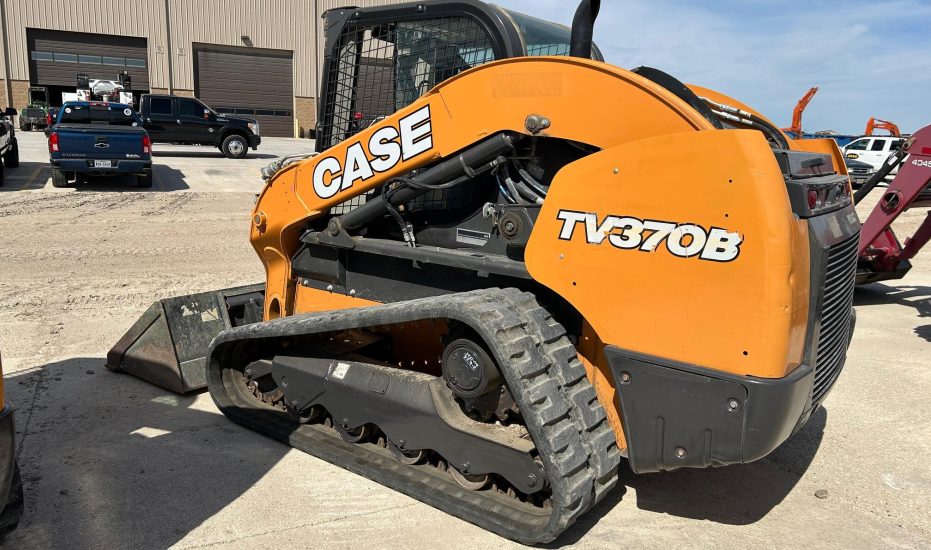

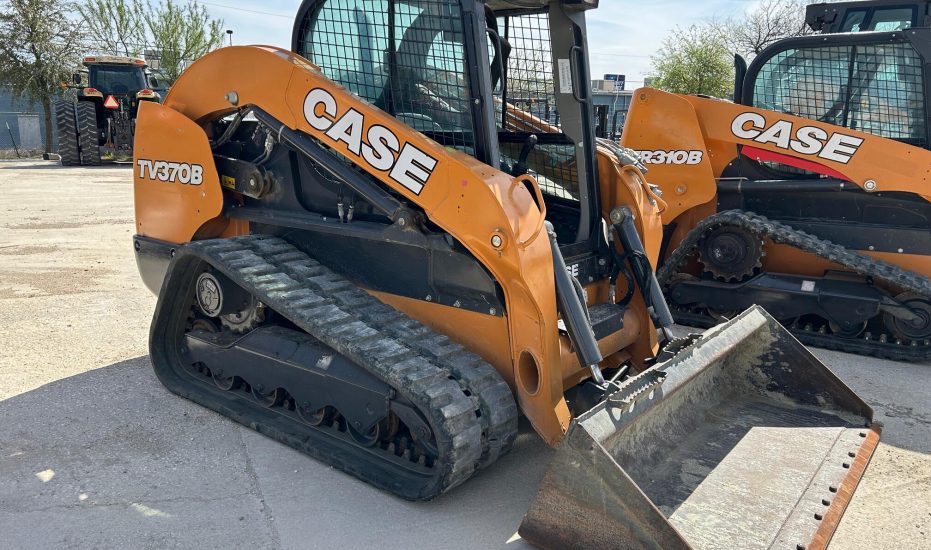

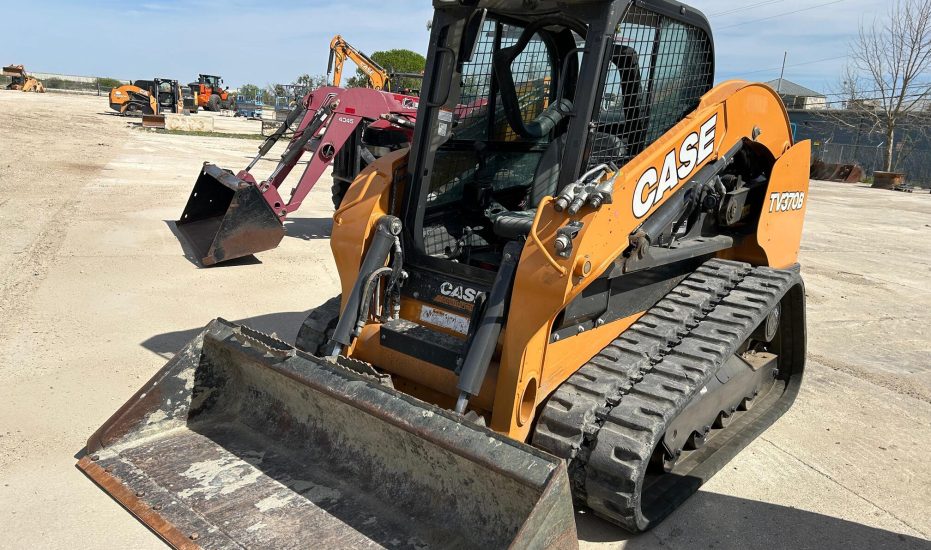

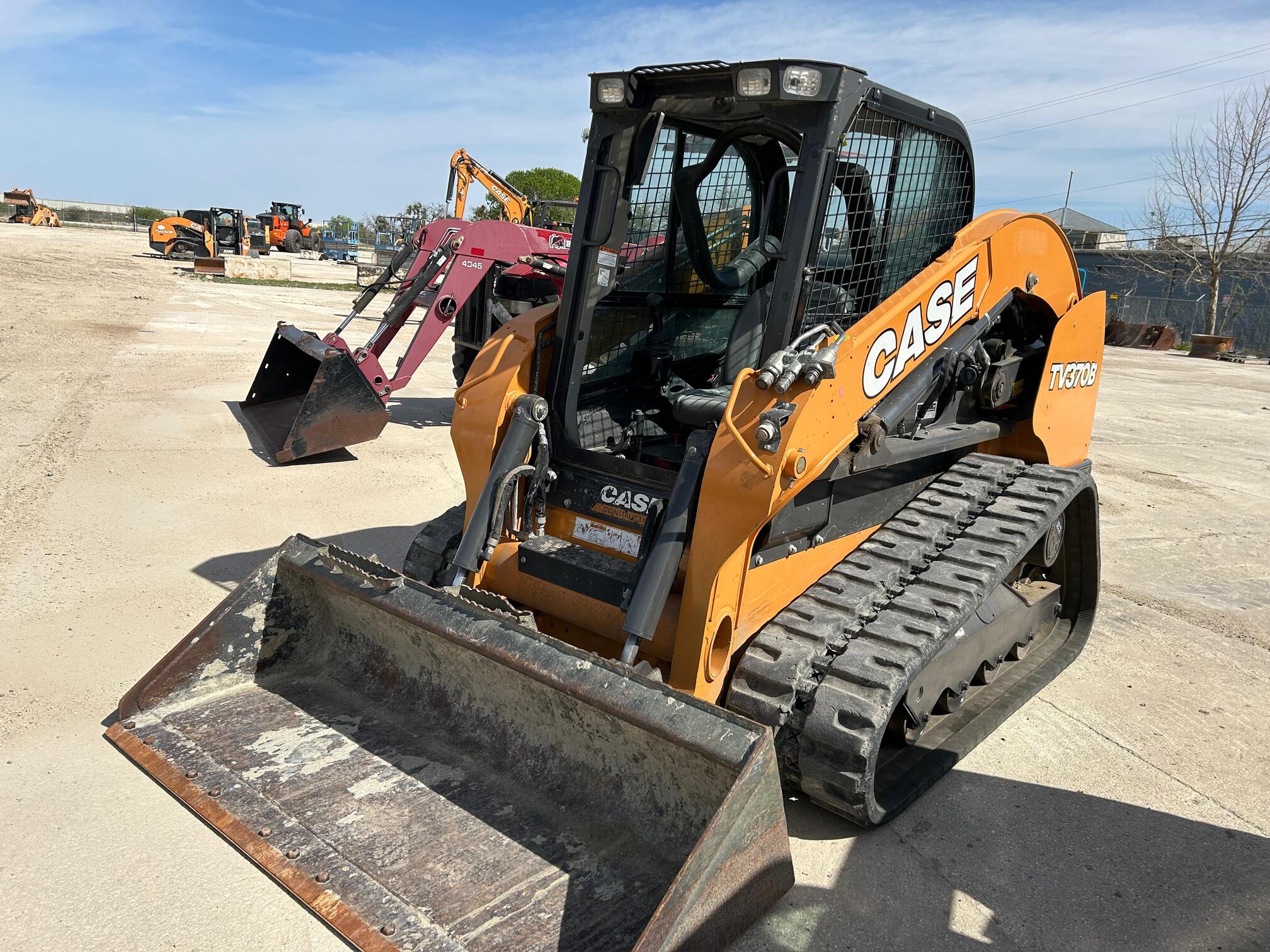

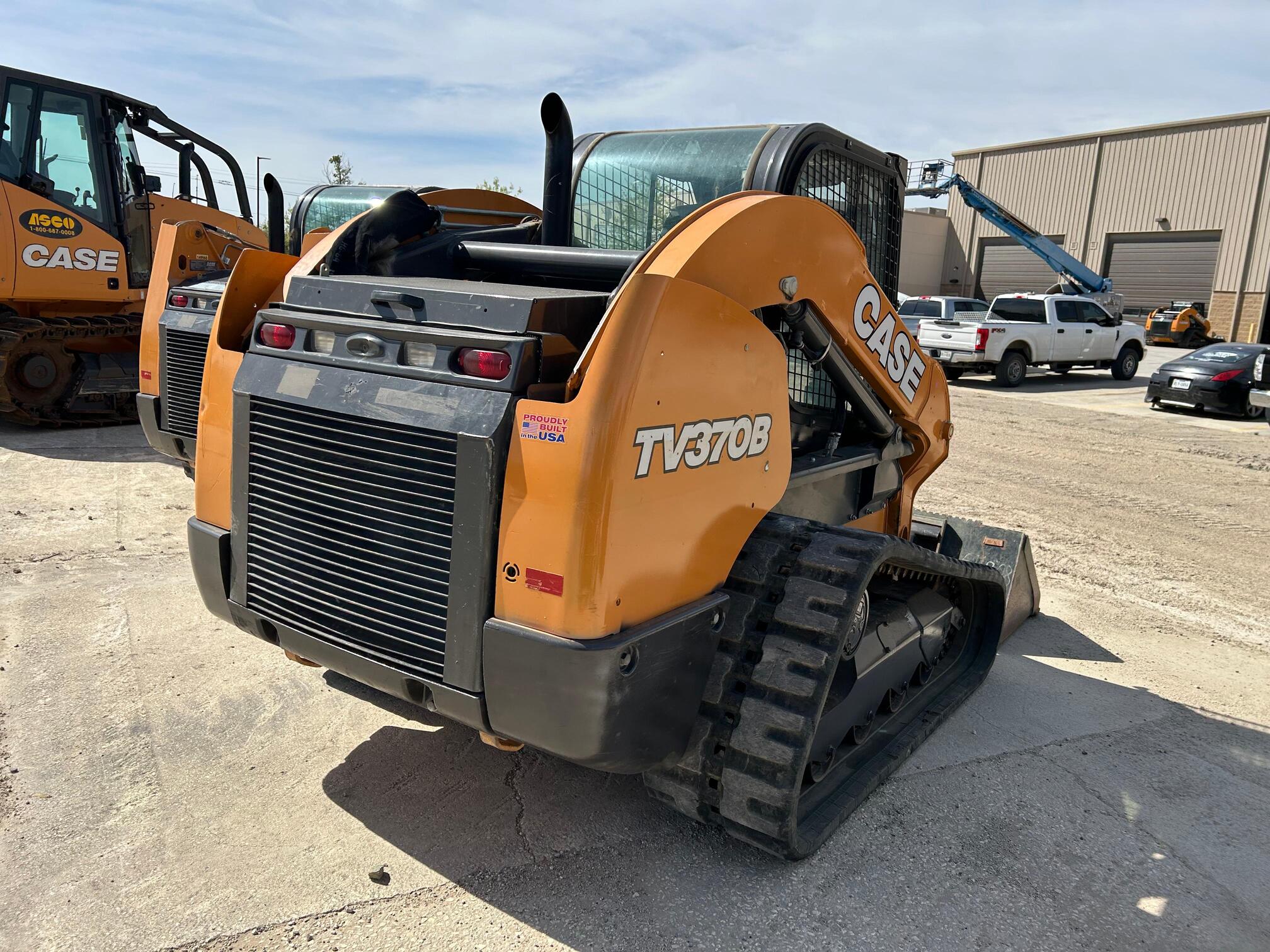

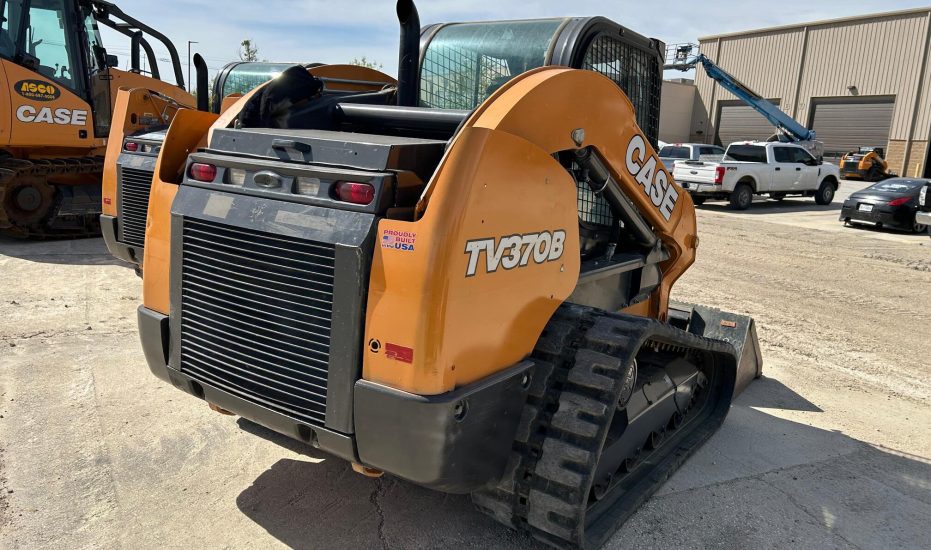

• TV370 = strength + lift + production
• Built for:
  • Truck loading
  • Pallet work
  • Rental fleets
  • High-output jobs
